Octagonal Ball Valve

Octagonal Ball Valve

Media: Water

Material: PVC, Plastic

Connection Form: Socket & Threaded

Driving Mode: Manual

Pressure: Medium Pressure

Size: 1/2″, 3/4″, 1″, 11/4″, 11/2″, 2″, 21/2″, 3″, 4″

Our octagonal ball valve is made of new and high-quality materials, and its products are more resistant to corrosion during use, and can be effectively used in the chemical industry. The inside of the ball valve is very smooth, with low frictional resistance and good airtightness.

Send Inquiry

PRODUCT DESCRIPTION

1. Product Information

Product Name	Octagonal Ball Valve	Color	Many Colors Available for Choice
Main Material	UPVC	Main Market	Southeast Asia, The Middle East, Africa
Size	1/2”-4”	Packing	Carton, Polybag, Color Box, or Customized
Power	Manual	Application	Swimming Pool , Construction Project, Agricultural Irrigation
End Connection	Socket/Threaded	Port	Ningbo/Shanghai
Customized Support	OEM, ODM	Lead Time	25-35 Days
Standard	CNS/JIS/DIN/BS/ANSI/NPT/BSPT	Sample	Free
Certificate	ISO9001,SGS, GMC, CNAS	Logo	Printed or Customized

2. Product Parameters

NO.	PART	MATERIAL	QTY
1	BODY	UPVC, CPVC	1
2	STEM O-RING	EPDM,FPM (NBR)	1
3	STEM	UPVC, CPVC	1
4	BALL	UPVC, CPVC	1
5	SEAT SEAL	TPE,TPV,TPO	2
6	CAP	PVC, ABS	1
7	HANDLE	PVC, ABS	1
8	SCREW	SS304,STEEL	1

3. Product Size (Unit: mm)

Model	DN		15	20	25	32	40	50	65	80	100
Model	SIZE		1/2″	3/4″	1″	1-1/4″	1-1/2″	2″	2-1/2″	3″	4″
QX02	thd./in	WEIGHT(g)	61	88	140	248	315	525	982	1460	2720
		NPT	14	14	11.5	11.5	11.5	11.5	8	8	8
		BSPT	14	14	11	11	11	11	11	11	11
	JIS	l	20	23	25	27	31	34	45	50	55
		d1	22.3	26.3	32.33	38.43	48.46	60.56	76.6	89.6	114.7
		d2	21.7	25.7	31.67	37.57	47.54	59.44	75.87	88.83	113.98
	ANSI	l	20	23	25	27	31	34	45	50	55
		d1	21.54	26.87	33.65	42.42	48.56	60.63	73.38	89.31	114.76
		d2	21.23	26.57	33.27	42.04	48.11	60.17	72.85	88.7	114.07
	DIN	l	20	23	25	27	31	34	45	50	55
		d1	20.3	25.3	32.3	40.3	50.3	63.3	75.3	90.3	110.4
		d2	20	25	32	40	50	63	75	90	110
d			15	19	24	30	34	45	55	70	85
H			37	55	66	73	81	91	99	121	134
A			68	80	94	100	110	136	170	210	236
L			77	91	103	111	123	146	178	210	255
D			30	35.5	43	52	62	75	91	106	130

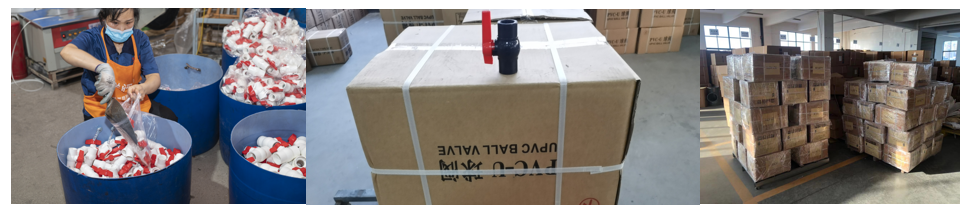

4. Product Packaging

All our products are packed in high-quality kraft cartons. Some customers need customized color boxes, and we will also carefully package them in accordance with customer requirements. Regardless of the quality or the service, we are adhering to the principle of perfection to do things, so please don’t worry that your order will be damaged in transit.

If you want to see our other PVC ball valves, please click here!

Our Certificate

Our Factory

We are a professional plastic valve and pipe fittings supplier. our company mainly produces various PVC ball valves, pipes, and fittings for 15 years. PVC SCH40 pipe fitting is a member of our product family, we welcome you to contact us for more detailed product information and look forward to a chance to cooperate with you.
