    The main raw material of our plastic pipe is PVC. In the process of manufacturing, we add the right amount of stabilizer, lubricant, filler, colorant and so on. Through the process of cooling, curing, setting, testing, packaging, etc. , finally formed a smooth surface, stable quality PVC pipes. Our plastic pipe factory has a large amount of stock, and can be customized according to your requirements. Please feel free to contact us for more information.

    China Plastic PVC Pipe Manufacturer

    We are a professional plastic valve, pipe, and pipe fittings manufacturer. our factory mainly produced various PVC ball valves, pipes, and fittings for 15 years. Plastic pipes are one of our main products. We have pipes of different standards and materials, such as DIN standard PN10/16 pipe, ASTM pipe, PVC pipe, PPR pipe, and more. We welcome you to contact us for more detailed product information and look forward to a chance to cooperate with you.

    this picture shows our plastic valve, pipe, and pipe fitting factory

    Plastic Pipe Information

    This video showcases our plastic pipe products. As a reputable manufacturer and supplier of pipe products in China, we consistently prioritize the requirements of our users. We continuously strive to broaden and enhance our range of pipes, encompassing standards, materials, sizes, colors, shapes, customization options, and more. We eagerly anticipate your visit to our factory!





    Product Name PVC Pipe Color Grey, White, Black, Green or Others
    Main Material PVC, UPVC, CPVC, PPR Structure Hollow
    Size Large, Medium, and Small Sizes are Available Packing Standard Export Packaging
    Main Market Southeast Asia, The Middle East,
    Africa, South America, North America    		 Application Water Supply and Drainage Project, Construction Project,
    Agricultural Irrigation
    Shape Round Origin Ningbo, Zhejiang, China
    Customized Support OEM, ODM Port    Ningbo/Shanghai
    Standard  ASTM, DIN, GB Lead Time  25-35 Days
    Certificate CE, ISO9001, UL Sample Free

    PVC PiPe Parameters

    PVC-U Pipe DIN Standard
    Nominal Size (mm) Weight/M (kg)
    PN6.3 PN8 PN10 PN12.5 PN16 PN20 PN25
    20 0.156 0.172 0.194
    25 0.199 0.22 0.249 0.297
    32 0.259 0.286 0.339 0.403 0.488
    40 0.363 0.431 0.53 0.641 0.762
    50 0.458 0.545 0.673 0.818 0.997 1.187
    63 0.638 0.722 0.859 1.074 1.308 1.583 1.583
    75 0.865 0.998 1.227 1.514 1.855 2.243 2.67
    90 1.165 1.445 1.642 2.18 2.664 3.201 3.852
    110 1.383 1.73 2.121 2.648 3.257 3.939 4.773
    125 1.804 2.254 2.754 3.408 4.153
    140 2.28 2.785 3.469 4.263 5.217 6.376 7.716
    160 2.978 3.627 4.551 5.597 6.824 8.346 10.132
    200 4.563 5.735 7.067 8.724 10.683 13.001 15.792
    225 5.762 7.183 8.882 11.041 13.533
    250 7.214 8.905 11.015 13.523 16.614 20.339
    315 11.293 14.134 17.493 21.478 26.445 32.311
    350 14.172 17.641 21.836 26.868 33.122 40.348
    400 18.251 22.76 28.092 34.723 42.565 52.003
    450 23.048 28.73 35.529 43.971 53.943
    500 28.631 35.395 43.839 54.309 66.666
    560 35.721 44.81 55.011 66.266
    630 45.174 56.255 69.693 85.91





    ASTM PVC Pipe (socket type)
    Size D(MM) Tolerance(±) SCH80 SCH40
    T(min/mm) Tolerance(±) T(min/mm) Tolerance(±)
    1/2″ 21.34 0.10  3.73 0.51 2.77 0.51
    3/4″ 26.67 0.10  3.91 0.51 2.87 0.51
    1″ 33.40  0.13 4.55 0.53 3.38 0.51
    1-1/4″ 42.16 0.15 4.85 0.58 3.56 0.51
    1-1/2″ 48.26 0.15 5.08 0.61 3.68 0.51
    2″ 60.32 0.18 5.54 0.66 3.91 0.51
    2-1/2″ 73.02 0.20  7.01 0.84 5.16 0.61
    3″ 88.90  0.23 7.62 0.91 5.49 0.66
    4″ 114.30  0.25 8.56 1.02 6.02 0.71
    5″ 141.30  0.28 9.52 1.14 6.55 0.79
    6″ 168.28 0.38 10.97 1.32 7.11 0.86
    8″ 219.08 0.38 12.70  1.52 8.18 0.99
    10″ 273.05 0.38 15.06 1.8/0 9.27 1.12
    12″ 323.85 0.38 17.45 2.08 10.31 1.24



    UPVC Pipe ASTM Series
    Nominal Size (inch) Average Outer diameter
    (mm)    		 Wall Thicknesses (Minimum)
    SDR64 SDR41 SDR32.5 SDR26 SDR21 SDR17 SDR13.5
    1/2″ 21.34 1.57
    3/4″ 26.67 1.52 1.57 1.98
    1″ 33.4 1.52 1.6 1.96 2.46
    1-1/4″ 42.16 1.52 1.63 2.01 2.49 3.12
    1-1/2″ 48.26 1.52 1.85 2.29 2.84 3.58
    2″ 60.32 1.85 2.31 2.87 3.56 4.47
    2-1/2″ 73.02 2.24 2.79 3.48 4.29 5.41
    3″ 88.9 2.16 2.74 3.34 4.24 5.23 6.58
    4″ 114.3 1.78 2.79 3.51 4.39 5.44 6.73 8.46
    5″ 141.3 2.21 3.45 4.34 5.44 6.73 8.31 10.46
    6″ 168.28 2.64 4.11 5.18 6.48 8.03 9.91 12.47
    8″ 219.08 3.43 5.33 6.73 8.43 10.41 12.9
    10″ 273.05 4.27 6.65 8.41 10.49 12.98 16.05
    12″ 323.85 5.05 7.9 9.96 12.45 15.39 19.05
    14″ 355.6 8.66 10.92 13.67 16.92 20.9
    16″ 406.4 9.91 12.5 15.62 19.35 23.9



    CPVC Pipe ASTM2846 Standard SDR11
    Size Weight/M Size Weight/M
    ½” 0.12 ½” 0.106
    ¾” 0.21 ¾” 0.172
    1″ 0.343 1″ 0.268
    1¼ “ 0.52 1¼” 0.426
    1½” 0.72 1½” 0.594
    2″ 1.222 2″ 1.094



    PVC PiPe Package

    Our PVC pipe packing is very strong, and can effectively avoid the plastic pipe to suffer unnecessary losses. Of course, if you have additional requirements for packing, we will also meet you.

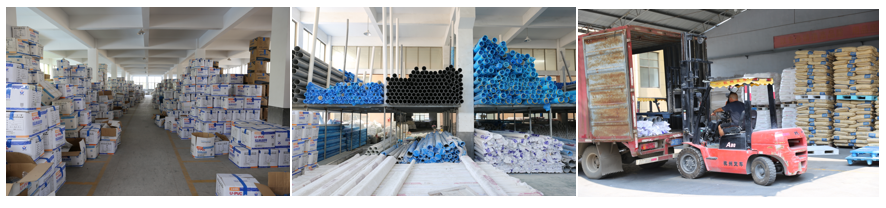

    this picture shows the pvc pipe packaging

    PVC Pipe Application Field

    The application fields of our plastic/PVC pipes are very broad: household water supply/drainage, agricultural irrigation, urban construction, industrial chemical industry, etc. In addition, we have a variety of product quality standards, matching different standards for different fields, which makes our pipes very standardized from production to use.

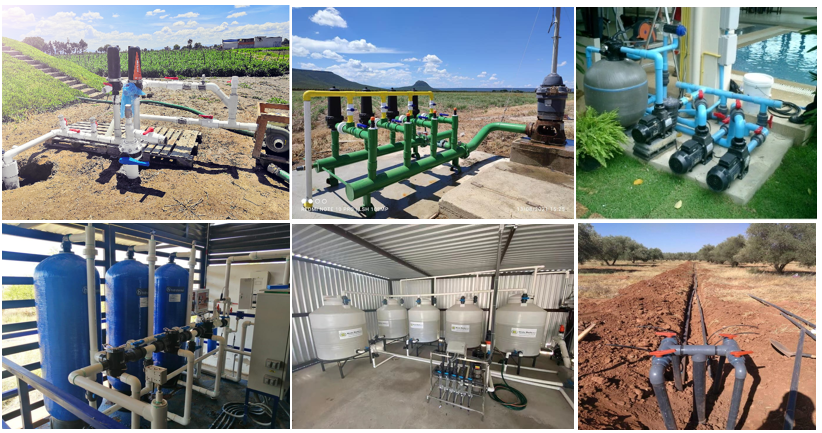

    this picture shows different application field of our pvc pipes

    Our Certificate

    this picture shows our certificate

    FAQ

    1. Are you a manufacturer or a trading company?
    We are the manufacturer and have our own factory.

    2. What’s your price?
    According to the different products, materials, sizes, and even MOQ, our prices are different. Anyway, our price is very competitive. Please contact me if you want to get the latest price list.

    3. What product does your company produce?
    we mainly manufacture kinds of plastic valve and plastic pipe, plastic fittings. We also developing group irrigation products to support sales. In addition, we will open new mold and customized service according to customers’ market needs.

    4. Do you accept OEM?
    Yes, we accept OEM. We will engrave trademarks, laser print trademarks, and provide color box packaging, color box design, packaging design, pallet service, and product material formulas according to customer needs. The product material formula can also be replaced according to different usage requirements.

    5. Can you provide related documents?
    Yes, we can provide certificate files if you need them.

    6. How long is your lead time?
    The range of our lead time is 25-50 days. It depends on your requirement.

    7. Do you have a customized service?
    Yes, I will customize products according to customer needs.

    8. Can I be your distributor?
    Yes, we are very glad to cooperate with customers all over the world.

    9. Where is your company’s address?
    Our company is located in the Ningbo Zhejiang Province, China.
