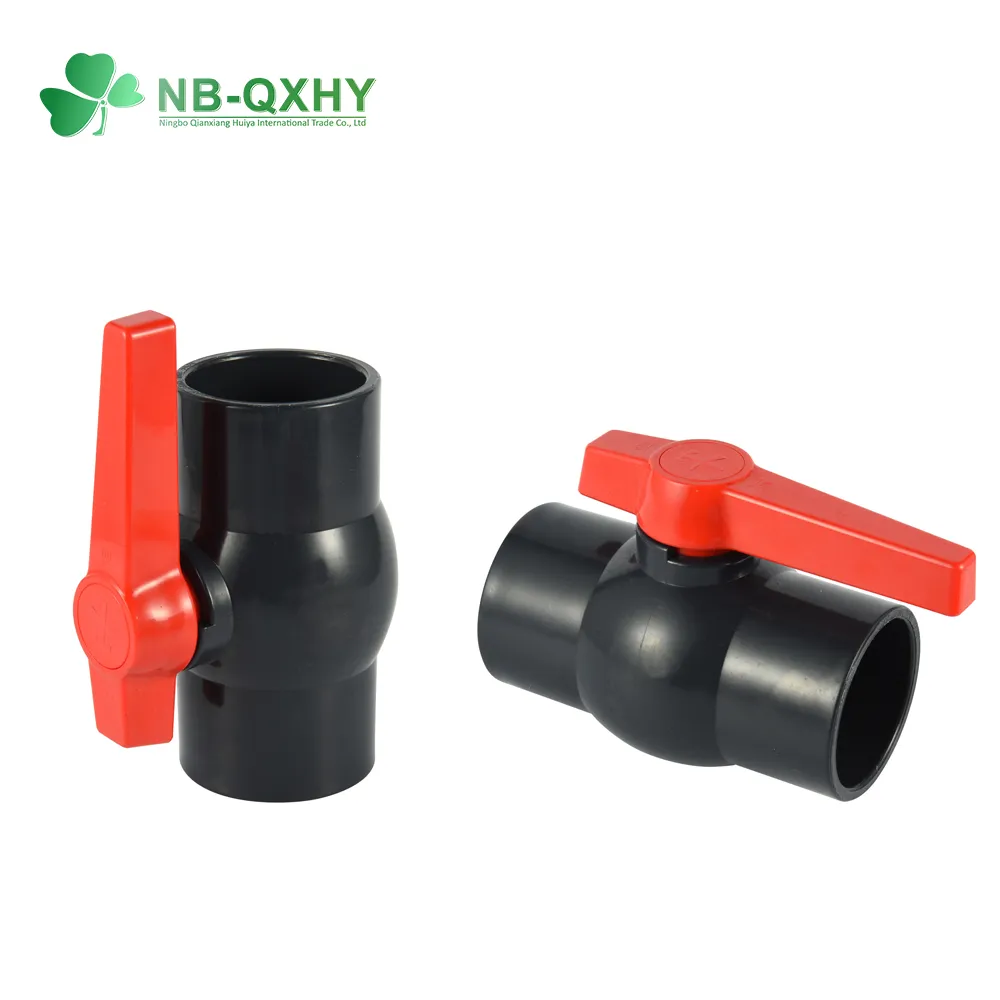

Compact PVC Ball Valve

Compact PVC Ball Valve

Media: Water

Material: PVC

Connection Form: Socket & Threaded

Pressure: Medium Pressure

Brand: NBQXHY

Model: QX002

Size: 1/2″ to 4″

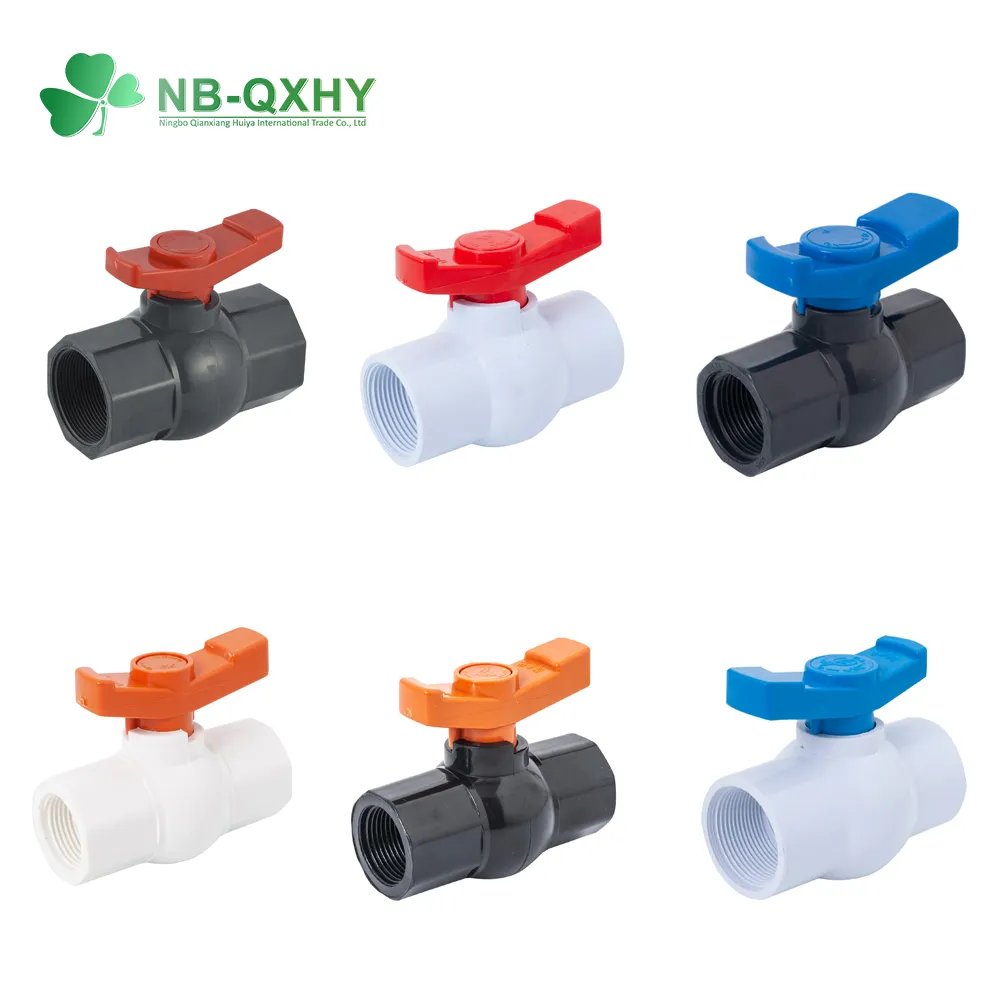

Our compact PVC ball valves are available in different sizes, colors, and handles. We not only have conventional ball valves for you to choose from, but also custom ball valves according to your needs to match your market.

Send Inquiry

PRODUCT DESCRIPTION

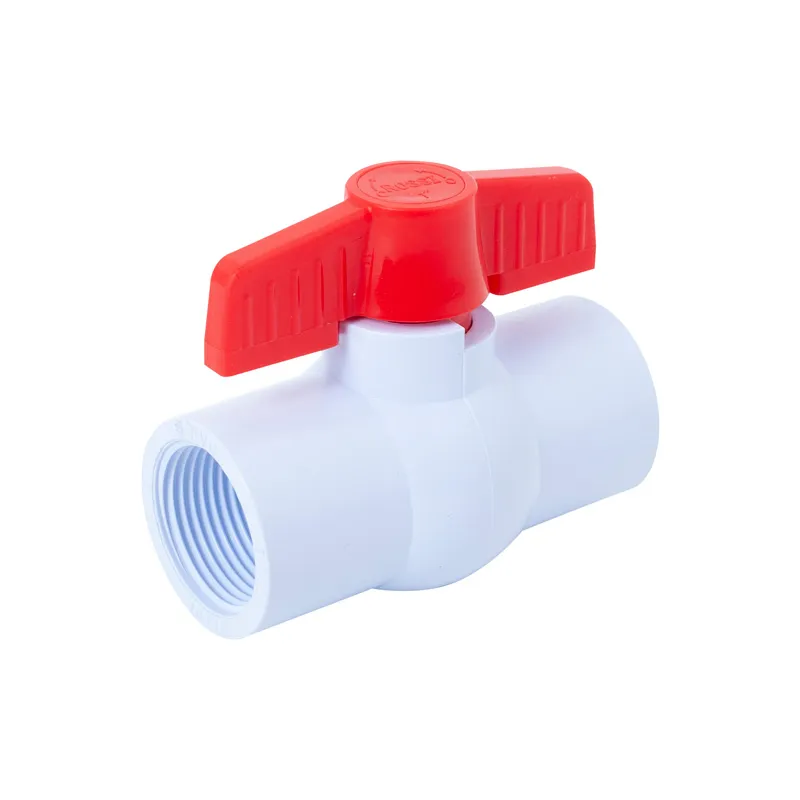

This is a compact PVC ball valve with a red handle and is made from white PVC. Two different connection forms (Socket and threaded ) make it more choices in the piping system.

Compact PVC Ball Valve Manufacturer

We are a professional plastic valve and pipe fittings supplier. our company mainly produces various PVC ball valves, pipes, and fittings for 15 years. The compact PVC ball valve is a member of our product family, we welcome you to contact us for more detailed product information and look forward to a chance to cooperate with you.

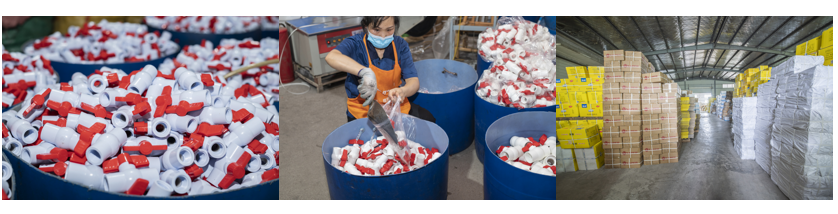

This picture shows our pvc valve and pipe fittings factory

Compact PVC Ball Valve Information

Our compact PVC ball valve is made of corrosion-resistant UPVC (Unplasticized Polyvinyl Chloride). The red handle is very strong and will not break. And this handle type can be replaced.

Payment Terms	L/C, T/T, Western Union, Paypal	Package	Carton, Color Box or Customized
MOQ	Negotiable	Size	1/2″- 4″
Lead Time	25-35 days	Nominal Pressure	Pn10, Pn16, Pn25
Port	Ningbo, China	Driving Mode	Manual
Function	Blow-Down Valve	Transportation	Ocean, Land, Air
Standard	DIN, ANSI, BS, JIS	Place of Origin	China Mainland
Color	White, Gray, Blue, Brown and Others	Application	Industrial Usage, Water Industrial Usage, Household Usage

Compact PVC Ball Valve Parameters

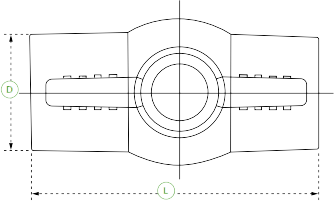

This picture shows the pvc ball valve design drawings.

NO.	PART	MATERIAL	QTY
1	BODY	UPVC, CPVC	1
2	STEM O-RING	EPDM,FPM (NBR)	1
3	STEM	UPVC, CPVC	1
4	BALL	UPVC, CPVC	1
5	SEAT SEAL	TPE,TPV,TPO	2
6	CAP	PVC, ABS	1
7	HANDLE	PVC, ABS	1
8	SCREW	SS304,STEEL	1

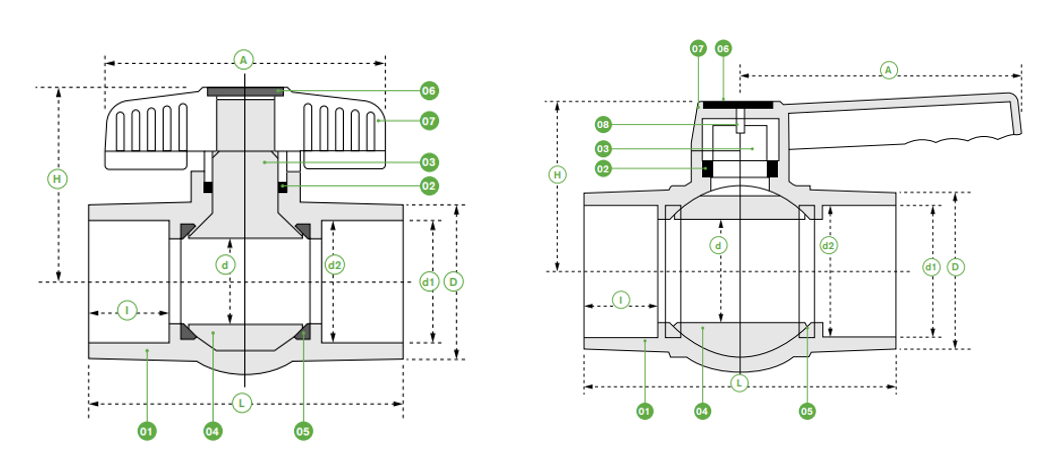

The picture shows the design drawings of pvc ball valve

Model	DN		15	20	25	32	40	50	65	80	100
Model	SIZE		1/2″	3/4″	1″	1-1/4″	1-1/2″	2″	2-1/2″	3″	4″
QX02	thd./in	WEIGHT(g)	61	88	140	248	315	525	982	1460	2720
		NPT	14	14	11.5	11.5	11.5	11.5	8	8	8
		BSPT	14	14	11	11	11	11	11	11	11
	JIS	l	20	23	25	27	31	34	45	50	55
		d1	22.3	26.3	32.33	38.43	48.46	60.56	76.6	89.6	114.7
		d2	21.7	25.7	31.67	37.57	47.54	59.44	75.87	88.83	113.98
	ANSI	l	20	23	25	27	31	34	45	50	55
		d1	21.54	26.87	33.65	42.42	48.56	60.63	73.38	89.31	114.76
		d2	21.23	26.57	33.27	42.04	48.11	60.17	72.85	88.7	114.07
	DIN	l	20	23	25	27	31	34	45	50	55
		d1	20.3	25.3	32.3	40.3	50.3	63.3	75.3	90.3	110.4
		d2	20	25	32	40	50	63	75	90	110
d			15	19	24	30	34	45	55	70	85
H			37	55	66	73	81	91	99	121	134
A			68	80	94	100	110	136	170	210	236
L			77	91	103	111	123	146	178	210	255
D			30	35.5	43	52	62	75	91	106	130

PS: The above are the parameters of the compact PVC ball valve. Because of our customized service, we can change the parameters according to your requirements.

Compact PVC Ball Valve Packaging

Our packaging service is very flexible. Generally speaking, we use plastic bags and mica packaging to package compact PVC ball valves. Of course, color boxes can also be customized. As long as you provide your ideas, we can help you realize them.

The picture shows the compact pvc ball vavle packaging

Product Advantages

Because of its compact structure, its fluid resistance is very small.
The torque is small and the operation is very convenient.
The structure is simple and the application field is very broad.
Good Stem O-ring and seat seal make the 1 inch PVC ball valves have good tightness and will not leak water.
The handle is detachable, you can replace or customize the handle according to your needs.

Our Certificate

Our Factory

We are a professional plastic valve and pipe fittings supplier. our company mainly produces various PVC ball valves, pipes, and fittings for 15 years. PVC SCH40 pipe fitting is a member of our product family, we welcome you to contact us for more detailed product information and look forward to a chance to cooperate with you.
