Male Female Thread Ball Valve

Male Female Thread Ball Valve

Media: Water

Material: PVC, Plastic

Connection Form: Thread

Driving Mode: Manual

Structure: Fixed Ball Valve

Temperature: Normal Temperature

Size: 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″, 2-1/2″, 3″, 4″

All our ball valves have been strictly inspected for airtightness, so we can ensure that the ball valves will not leak water during operation. The raw material of the male female thread ball valve is PVC, which can well ensure the corrosion resistance and service life of the ball valve.

Send Inquiry

PRODUCT DESCRIPTION

1. Product Information

Product Name	Male Female Thread Ball Valve	Color	Customized
Main Material	PVC	Place of Origin	Zhejiang, China
Size	1/2″ to 4″	Packing	Carton, Polybag, Color Box, or Customized
Power	Manual	Application	Swimming Pool, Construction Project, Agricultural Irrigation
End Connection	Threaded	Port	Ningbo/Shanghai
Customized Support	OEM, ODM	Lead Time	25-35 Days
Standard	CNS/JIS/DIN/BS/ANSI/NPT/BSPT	Sample	Free
Certificate	ISO9001,SGS, GMC, CNAS	Logo	Printed or Customized

2. Product Parameters

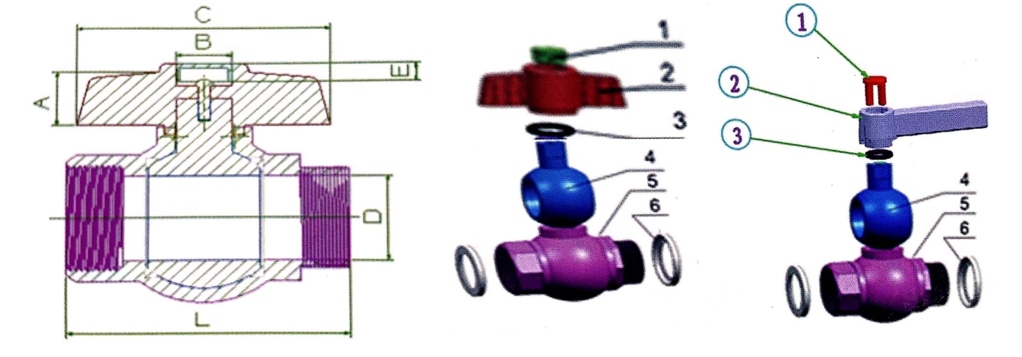

NO.	PART	MATERIAL
1	CAP	PVC, ABS
2	HANDLE	PVC, ABS
3	STEM O-RING	EPDM,FPM (NBR)
4	BALL	UPVC, CPVC
5	BODY	UPVC, CPVC
6	SEAT SEAL	TPE,TPV,TPO

3. Product Size

SIZE	BS	ANSI	JIS	DIN	NPT	BSPT	A	B	C	E	L
SIZE	D	D	D	DIN	Thd./in	Thd./in	mm	mm	mm	mm	mm
15mm(1/2″)	22	21.34	22	20	14	14	14.4	15.1	66	1.6	77
20mm(3/4″)	26	26.67	26	25	14	14	16.3	17.8	75	2.4	82
25mm(1″)	34	33.4	32	32	11.5	11	23	20.9	91	2.5	99
32mm(1-1/4″)	42	42.16	38	40	11.5	11	25	21	95	2.8	107
40mm(1-1/2″)	48	48.26	48	50	11.5	11	28	22.9	105	2.1	117
50mm(2″)	60	60.33	60	63	11.5	11	31	23.2	114	2.1	137
65mm(2-1/2″)	76	73	76	75	8	11	31.9	18.2	185	2.8	170
80mm(3″)	89	88.9	89	90	8	11	31.9	19	208	2.8	208
100mm(4″)	114	114.3	114	110	8	11	32.2	26	218	3.2	248

If you want to see our other PVC ball valves, please click here!

Our Certificate

Our Factory

We are a professional plastic valve and pipe fittings supplier. our company mainly produces various PVC ball valves, pipes, and fittings for 15 years. PVC SCH40 pipe fitting is a member of our product family, we welcome you to contact us for more detailed product information and look forward to a chance to cooperate with you.

FAQ

1. Are you a manufacturer or a trading company?
We are the manufacturer and have our own factory.

2. What’s your price?
According to the different products, materials, sizes, and even MOQ, our prices are different. Anyway, our price is very competitive. Please contact me if you want to get the latest price list.

3. What product does your company produce?
we mainly manufacture kinds of plastic valve and plastic pipe, plastic fittings. We also developing group irrigation products to support sales. In addition, we will open new mold and customized service according to customers’ market needs.

4. Do you accept OEM?
Yes, we accept OEM. We will engrave trademarks, laser print trademarks, and provide color box packaging, color box design, packaging design, pallet service, and product material formulas according to customer needs. The product material formula can also be replaced according to different usage requirements.

5. Can you provide related documents?
Yes, we can provide certificate files if you need them.

6. How long is your lead time?
The range of our lead time is 25-50 days. It depends on your requirement.

7. Do you have a customized service?
Yes, I will customize products according to customer needs.

8. Can I be your distributor?
Yes, we are very glad to cooperate with customers all over the world.

9. Where is your company’s address?
Our company is located in the Ningbo Zhejiang Province, China.

10. How can I contact you?
You can send us an email at any time to ask any questions, we will reply to you in the shortest possible time.
