Irrigation Union Ball Valve

Irrigation Union Ball Valve

Media: Water

Material: UPVC

Connection Form: F/M or F/F Threaded

Driving Mode: Manual

Nominal Pressure: PN10/150PSI

Size: 1/2”-4”

Our irrigation union ball valve has two connection forms: F/M or F/F Threaded. It is mainly used in the agricultural irrigation field.

Send Inquiry

PRODUCT DESCRIPTION

1. Introduction of Irrigation Union Ball Valve

Water resources are scarce in many areas, and how to save water resources during irrigation is particularly important. Our irrigation union ball valve is made of UPVC and the rubber ring is made of EPDM. All raw materials used are 100% new materials, and the quality is strictly controlled during the production process. Applying it to water-saving irrigation projects will minimize the waste of water resources.

Product name	Irrigation Ball Valve	Color	Black
Main Material	UPVC	Main Market	Southeast Asia, The Middle East, Africa,
Size	1/2”-4”	Packing	Carton, Polybag, Color Box, or Customized
Power	Manual	Application	Agricultural Irrigation
End Connection	Threaded	Port	Ningbo/Shanghai
Customized support	OEM, ODM	Lead Time	25-35 Days
Standard	CNS/JIS/DIN/BS/ANSI	Sample	Free
Certificate	ISO9001,SGS, GMC, CNAS	Logo	Printed or Customized

2. Structure of Irrigation Union Ball Valve

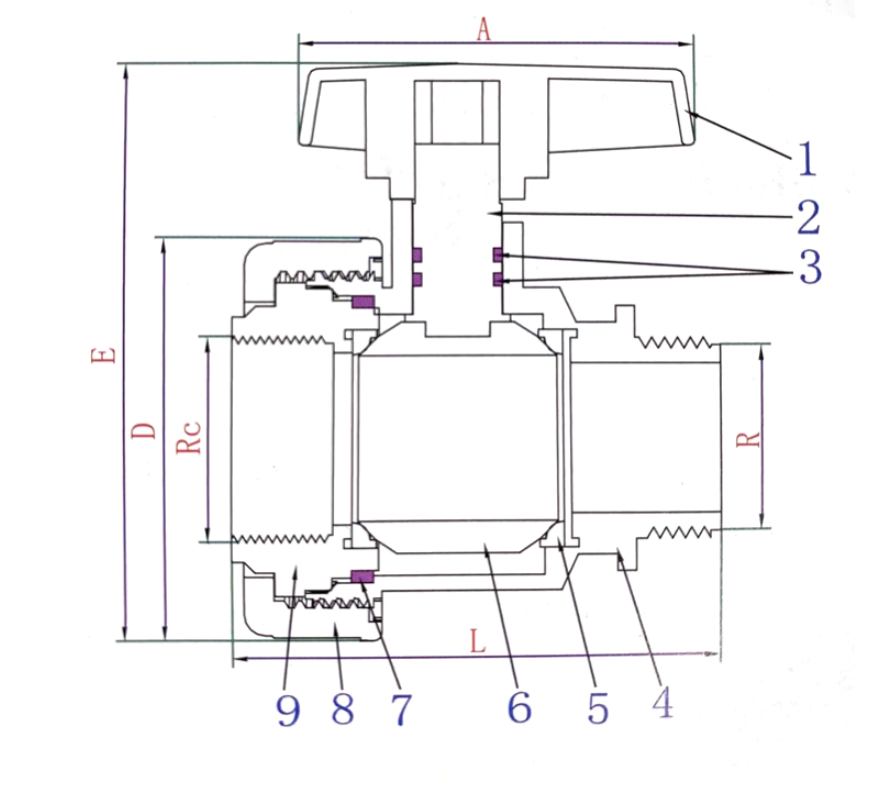

a. Irrigation Union Ball Valve F/M

NO.	PART	MATERIAL	QTY
1	HANDLE	PVC	1
2	STEM	UPVC, CPVC	1
3	STEM O-RING	EPDM, FPM (NBR)	2
4	BODY	UPVC, CPVC	1
5	SEAT SEAL	TPE, TPV, TPO	2
6	BALL	UPVC, CPVC	1
7	CARRIER O-RING	EPDM, FPM (NBR)	1
8	UNION NUT	UPVC, CPVC	1
9	SEAL CARRIER	UPVC, CPVC	1

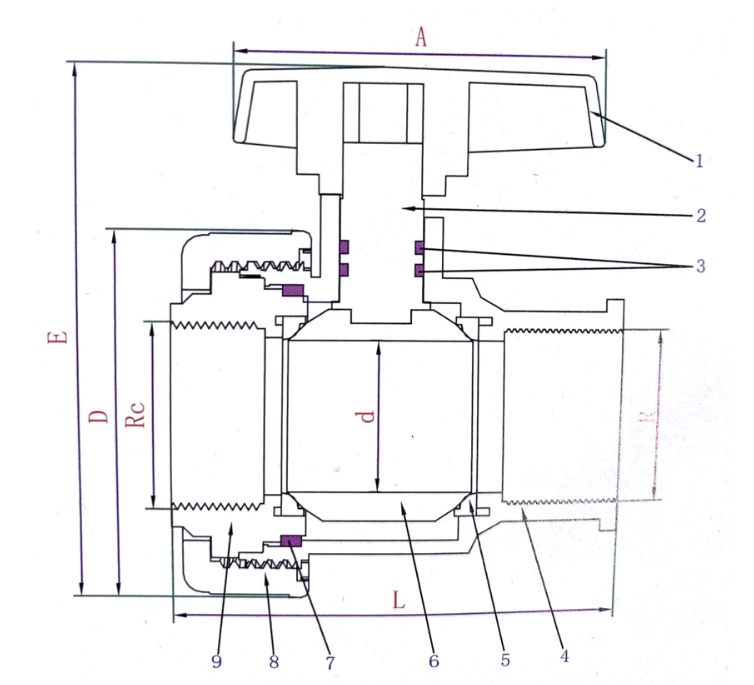

b. Irrigation Union Ball Valve F/F

NO.	PART	MATERIAL	QTY
1	HANDLE	PVC	1
2	STEM	UPVC, CPVC	1
3	STEM O-RING	EPDM, FPM (NBR)	2
4	BODY	UPVC, CPVC	1
5	SEAT SEAL	TPE, TPV, TPO	2
6	BALL	UPVC, CPVC	1
7	CARRIER O-RING	EPDM, FPM (NBR)	1
8	UNION NUT	UPVC, CPVC	1
9	SEAL CARRIER	UPVC, CPVC	1

3. Dimension of Irrigation Union Ball Valve

ITEM	IRRIGATION UNION BALL VALVE F/M
DN	15	20	25	32	40	50	65	80	100
SIZE	1/2”	3/4″	1″	1-1/4″	1-1/2″	2″	2-1/2″	3″	4″
d	15.2	19.7	24.9	29.8	38.3	48.5	59	71.2	97.4
C	54.4	59.6	68	79.1	93.9	116	139	167.2	203.3
E	75.2	87.3	100.3	115.1	134.2	160.9	189.3	219	266.8
A	60.2	66.9	74.8	84.5	94.3	109.2	125	139	158.7
L	71.2	80.8	92	107.5	116.1	143.7	168.5	204	250

ITEM	IRRIGATION UNION BALL VALVE F/F
DN	20	25	40	50	65	80	100
SIZE	3/4″	1″	1-1/2″	2″	2-1/2″	3″	4″
d		25.4	38.8	48.8	59	70.9	93.8
C		68.7	94	115.7	139	167	210.2
E		100.3	134.4	160.1	189.3	220.6	270
A		74.7	94.4	109.1	125	139	158
L		95.7	114.6	131.7	164.4	186	226.4

PS: This type of union ball valve is a valve specially used for irrigation, if you want to know about other types of union ball valves, please click here.
